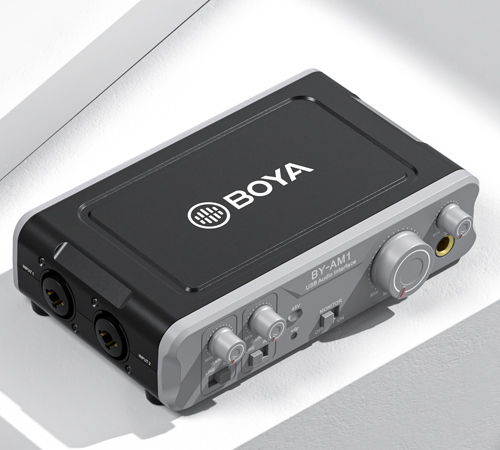

The BY-AM1, a dual-channel audio mixer, provides you with a compact audio mixing solution for 6.35mm line-in devices or any XLR microphones (Such as BY-M1000/BY-BY-BM58), which allows you to easily mount and control input devices, and to transmit the output signal to your computer.


Product Highlights:

•  Dual-channel audio mixer for dynamic/condenser
   XLR mics, line-level or instrument signals.
•  Compatible with computers, laptops, speakers.
•  No-latency headphone monitoring (Includes 6.35mm
   to 3.5mm TRRS adapter).
•  6.35mm/XLR combo inputs, 6.35mm audio outputs.
•  USB 2.0 connection.
•  Supply 48V phantom power via XLR input.
•  1/4"threaded hole for tripod mounting.



Multiple Built-in Inputs Enriching Your Audio
Thanks to built-in 6.35mm/XLR combo inputs, The BY-AM1 can easily accept signal directly from XLR microphones or electric instruments, like guitar and bass etc.

Wider Sampling Rates For Your Professional Need
The BY-AM1 can support 44.1k-192kHz sampling rates audio without any sound compromise, when connecting to XLR microphone and instruments input devices.

No-latency Headphone Monitoring
With 6.35mm headphone monitoring jack and supplied 6.35mm to 3.5mm audio adapter, The BY-AM1 allows you hear your input signal through the headphone without any distracting echo or latency.

Supply 48V phantom power via XLR input
The BY-AM1 can provide 48V phantom power for XLR passive microphone. Built-in 1/4" mounting screw on the base can be attached to tripod and other accessories.



Packling list

-6.6'(2m)USB-A to USB-B cable
-6.35mm to 3.5mm TRRS audio adapter
